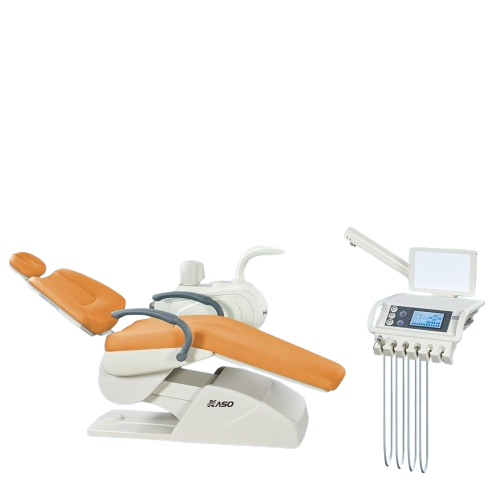

KASO KS-DLX301 Dental Unit

Description

Design and Protection Mechanism: Luxury Upholstered Chair Configuration The KASO KS-DLX301 is a sophisticated, fully integrated dental unit designed for enhanced ergonomics and workflow efficiency in general dentistry, endodontics, orthodontics, and cosmetic practices within private clinics, hospitals, and multi-chair facilities. Engineered with a robust steel frame and double anti-rust coating for longevity and hygiene, it includes a seamless micro-fiber upholstery in customizable colors (e.g., blue, green) that resists stains and facilitates quick wipe-downs. The unit’s separated air and water systems prevent cross-contamination, while the luxury maintenance box houses tools securely; IPX4-rated components shield against splashes, and the overall stability supports up to 150 kg patient loads, complying with ISO 13485 and CE standards for safe, durable operation.

Performance and Chair Adjustment: Features a silent, computer-controlled DC motor for precise, noiseless positioning, with 3 programmable memory settings for one-touch recall of patient preferences (e.g., supine for exams, upright for consultations). The backrest reclines 5–75° and seat tilts 0–15°, with synchronized armrest (adjustable 65–110 cm height) to reduce clinician strain during extended sessions. The multifunction foot pedal enables hands-free control of chair, delivery water, and chip blower, while the imported magnetic valves ensure responsive air/water flow (0.5–0.8 MPa air, 0.2–0.4 MPa water), supporting uninterrupted procedures with minimal fatigue.

Delivery System and Accessibility: The articulated delivery arm extends 90 cm with 3-way syringe ports (air, water, spray) and integrated strong/low suction for efficient debris management. The rotatable sandblasting glass cuspidor (120° turn) and saliva ejector enhance patient comfort, while the built-in purifying water system (RO filtration) delivers bacteria-free rinse (<200 CFU/ml). The luxury micro-fiber cushion (contoured for lumbar support) and foldable armrests provide easy access for wheelchair transfers, with optional end extensions for taller patients.

User Interface and Operational Features: Equipped with an assistant control panel for independent operation of light intensity, suction, and cuspidor rinse, plus a doctor-side console with LED sensor lamp (halogen/LED options, ≥20,000 lux, 3 intensity levels). The X-ray film viewer (backlit) and multifunction foot pedal integrate seamlessly, supporting up to 6 languages (English, Chinese, Spanish) for global clinics. The unit’s one-key articulation and auto-return functions streamline workflows, with optional upgrades like curing light or intraoral camera for comprehensive setups.

Sterilization and Maintenance: The maintenance box allows quick access for daily cleaning, with all water lines featuring independent flushing to prevent biofilm buildup. Upholstery and cuspidor disinfect with EPA-approved agents, and the double anti-rust construction withstands autoclave exposure for tools. Self-lubricating valves and modular arm design simplify servicing (tool-free panel removal), with annual filter replacements ensuring water purity; backed by a 2-year warranty for core components.

Electrical and Environmental Specifications: Operates on AC 220V/50Hz (110V/60Hz optional) at 800W, with surge protection and low-voltage tolerance (180–260V) for stable performance in variable grids. Rated for 10–40°C ambient and ≤80% RH, the unit includes EMI shielding to avoid interference with digital imaging; low noise (<55 dB motor) promotes a calm clinical atmosphere.

Dimensions and Installation Flexibility: Chair dimensions: 144 × 104 × 119 cm (L × W × H) with a total weight of 240 kg for inherent stability. The rotatable delivery arm and foldable assistant tray adapt to left/right-handed setups, requiring a 2 m × 1.5 m floor space; quick-plug electrical and plumbing connections enable installation in <4 hours.

• Throughput and Workflow: Supports 15–25 patients daily with <1-minute positioning, ideal for mixed restorative and preventive caseloads.
• Detection and Monitoring: Integrated sensors for water pressure and chair load; logs 500+ usage cycles via optional USB.
• Detection Principle: DC motor with magnetic valves for precise fluid/chair control.
• Additional Features: Optional ultrasonic scaler, curing light, intraoral camera; rotatable cuspidor for hygiene.
• Data Storage: Programmable memory for 3 positions; exportable via console for maintenance records.
• Application Modes: General dentistry, orthodontics, endodontics; adaptable for pediatric/adult with extensions.
