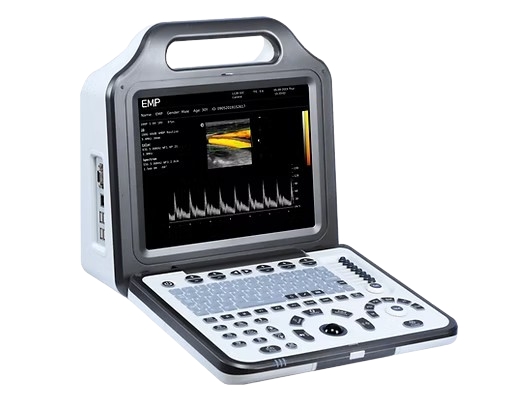

Emperor N5 Laptop Color Doppler Ultrasound System

Description

Design and Protection Mechanism: Laptop-Style Portable Configuration The Emperor N5 is a slim, portable color Doppler ultrasound system designed for on-the-go diagnostics in outpatient clinics, emergency departments, rural health centers, and telemedicine setups, supporting a wide range of applications from obstetrics to musculoskeletal imaging. Weighing just 6.5 kg with a foldable 15.6-inch HD LED screen (1920×1080 resolution), it features a magnesium alloy chassis with rubberized edges for drop resistance (up to 1 m) and an IP54-rated sealed keyboard to withstand spills and dust. The integrated handle and optional shoulder strap enhance mobility, while the fanless cooling system ensures silent operation; compliant with IEC 60601-1 for electrical safety and ISO 13485 for quality, it includes overvoltage protection and a spill-resistant membrane for reliable use in dynamic environments.

Performance and Imaging Technologies: Offers superior image clarity with iClear™ speckle reduction for noise suppression, iBeam™ spatial compounding for multi-angle enhancement, and iFlow™ directional power Doppler for sensitive vascular flow detection. Supports B/M/Color/PW/CW/TDI modes with resolutions up to 0.2 mm in B-mode and Doppler sensitivities down to 0.01 m/s, achieving frame rates >60 fps for real-time 3D/4D rendering. The adaptive frequency scanning (1–18 MHz probes) provides penetration up to 30 cm, with auto-optimization for low-contrast tissues; battery-powered operation lasts 2–3 hours for 50–100 scans, ideal for remote or battery-dependent scenarios.

Probe and Accessibility: Compatible with up to 8 probe types (linear, convex, phased array, endocavity, pencil) including wireless models for cable-free exams up to 3 m range. The articulating screen tilts 0–120° and rotates 90° for ergonomic viewing, while the backlit gel warmer (37°C) and integrated probe holder reduce setup time. The compact footprint (380 × 350 × 70 mm folded) fits in backpacks, and one-key boot-up (<15 seconds) enables rapid deployment; optional docking station adds desktop functionality with external monitor support.

User Interface and Operational Features: Intuitive 15.6-inch touchscreen with gesture navigation and customizable workflows displays up to 6 real-time images, auto-measurements (e.g., OB biometry, IMT), and AI-assisted annotations like follicle counting. Multilingual interface (up to 12 languages, including English and Chinese) and voice controls streamline use, with Panoramic Zoom for wide-field views and Trapezoid mode for linear probes. Built-in 512 GB SSD stores 5,000+ exams, with USB/LAN/Wi-Fi for DICOM 3.0 PACS integration and report generation in PDF; the eGateway tele-ultrasound feature enables remote consultations.

Sterilization and Maintenance: The sealed touchscreen and probe wells clean with 70% IPA or disinfectant wipes, with autoclavable probe sheaths (134°C) for sterility. Modular transducers detach for independent servicing, and self-diagnostics monitor system health with alerts for calibration drift. The brushless fanless design eliminates dust filters, with remote firmware updates via Ethernet; probes last >5,000 hours, backed by a 3-year warranty including on-site support.

Electrical and Environmental Specifications: Runs on built-in 10.8V Li-ion battery (3-hour runtime) or AC 100–240V/50–60Hz at 100W, with hot-swappable charging. Operates in 5–40°C ambient with ≤85% RH, featuring EMI shielding (IEC 60601-1-2) to avoid interference with pacemakers. Low power mode extends battery by 30%, with eco-friendly LEDs consuming 60% less than traditional systems.

Dimensions and Portability: Laptop form: 380 × 350 × 70 mm (closed) weighs 6.5 kg, expanding to 380 × 350 × 300 mm open. The shock-absorbent case and optional backpack enable air/vehicle transport; quick-deploy stand adjusts for tabletop use in <30 seconds.

• Throughput and Workflow: Handles 30–50 exams per charge with <45-second mode changes, perfect for mobile OB/GYN or vascular screening.
• Detection and Monitoring: Multi-beam Doppler with auto-gain; logs 2,000 exams with AI anomaly detection.
• Detection Principle: Digital beamforming with composite imaging for artifact-free, high-contrast visuals.
• Additional Features: Auto-biometry; eFov wide-field; wireless reporting; tele-ultrasound.
• Data Storage: 512 GB SSD for 10,000+ images; DICOM/PDF export via USB/Wi-Fi.
• Application Modes: OB/GYN, abdominal, vascular, MSK, small parts; supports 3D/4D and contrast.
