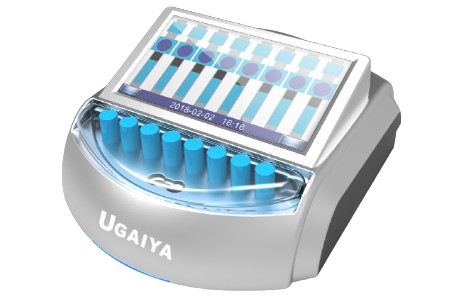

Fullcare Autoreader

Description

Test Parameters: Comprehensive Urine Chemistry Analysis The Fullcare Autoreader performs automated evaluation of 10–12 urine parameters, including glucose, bilirubin, ketone, specific gravity, red blood cells, pH, protein, urobilinogen, nitrite, leukocytes, ascorbic acid, and color, enabling quick screening for urinary tract infections, diabetes, kidney disorders, and liver function issues. This multi-parameter profiling supports point-of-care decisions in primary care, urology, and routine health checks, with semi-quantitative results reported in seconds to flag abnormalities like glucosuria or hematuria for further investigation.

Parameters Measured: Analyzes up to 12 analytes via reflectance photometry: glucose (NEG–1000 mg/dL), bilirubin (NEG–20 mg/dL), ketone (NEG–160 mg/dL), specific gravity (1.000–1.030), RBC (NEG–250/µL), pH (5–9), protein (NEG–1500 mg/dL), urobilinogen (NEG–12 mg/dL), nitrite (NEG/+), leukocytes (NEG–500/µL), ascorbic acid (NEG–400 mg/dL), and color (yellow/orange). Generates digital readouts with color-coded flags for abnormal results, achieving <5% intra-assay CV and correlation >95% to manual methods, plus interference correction for ascorbic acid or high specific gravity.

Sample Requirements: Processes standard urine test strips (e.g., 10-parameter dipsticks) with 0.1–1 mL urine volume, suitable for random, first-morning, or 24-hour collections. Supports manual strip insertion or optional auto-loader for batches, with no pre-treatment needed; compatible with midstream clean-catch or catheter samples, minimizing contamination risks in outpatient or lab settings.

Throughput: Handles up to 60 samples per hour in continuous mode, optimized for small to mid-sized labs or clinics managing 200–500 tests daily. The 8–12 second per-strip cycle with auto-calibration ensures high-volume screening without bottlenecks, ideal for routine wellness panels or urgent UTI evaluations during peak hours.

Technology: Employs reflectance photometry with a 6-wavelength LED photometer (470–660 nm) for color change detection on reagent pads, using advanced algorithms for strip alignment and artifact rejection. The built-in barcode reader verifies strip lot and expiry, while temperature compensation (15–30°C) maintains accuracy; integrates with optional turbidimeter for sample clarity checks, aligning with CLSI GP16-A3 for urinalysis automation.

User Interface and Storage: Boasts a 7-inch color touchscreen with intuitive icons for sample ID entry, result review, and QC setup, supporting up to 8 languages (English, Chinese, Spanish). Stores up to 50,000 results with patient demographics, images, and QC logs in a searchable database; built-in thermal printer outputs customizable reports, with USB/RS232/LAN ports for HL7 LIS integration and PDF/CSV exports for EMR compliance.

Reagent System: Compatible with Fullcare’s 10/12-parameter strips (100–200 strips/vial, 18-month shelf life at 2–30°C), featuring on-board calibration strips for daily verification. Low waste design with auto-eject and rinse cycles reduces cross-contamination, while reagent tracking alerts for low stock; cost per test < $0.50 with 99% strip utilization.

Dimensions and Portability: Benchtop unit measuring 280 × 220 × 150 mm (W × D × H) weighs 3.5 kg, fitting crowded lab benches or mobile carts. Operates quietly (<45 dB) on AC 100–240V with ≤50 VA power, tolerating 10–40°C ambient and 20–85% humidity for versatile deployment.

• Throughput: 60 samples/hour
• Detection Channel: Multi-wavelength LED photometer.
• Detection Principle: Reflectance photometry for color change on reagent pads.
• Detection Items: 10–12 parameters (glucose, bilirubin, ketone, SG, RBC, pH, protein, urobilinogen, nitrite, leukocytes, ascorbic acid, color); alarms for abnormal flags.
• Built-in thermal printer, supports external printers. Multi-builtin report templates available.
• 50,000 sample results, including parameters, images, and patient information.
• Sample modes: Urine strips (manual/auto-load); barcode verification.
