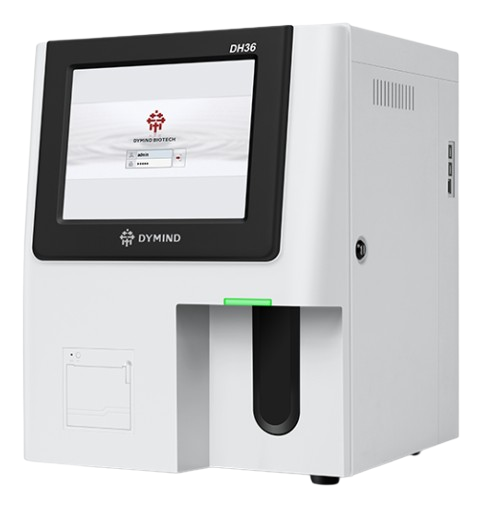

Dymind DH36 3-Part Auto Hematology Analyzer

Description

3-Part Differentiation: Comprehensive White Blood Cell Analysis The Dymind DH36 provides accurate 3-part WBC differentiation, categorizing cells into granulocytes (Gran# and Gran%), monocytes (Mid# and Mid%), and lymphocytes (Lym# and Lym%), alongside RBC and PLT counts. This enables efficient detection of leukocytosis, neutropenia, or lymphoproliferative disorders, aiding in the diagnosis and monitoring of infections, allergies, and hematologic malignancies with clear, clinician-friendly reports.

Parameters Measured: Evaluates 21 key parameters for thorough CBC profiling: WBC, RBC, HGB (measured via non-toxic cyanide-free colorimetry), HCT, MCV, MCH, MCHC, RDW-CV, RDW-SD, PLT, MPV, PDW, PCT, P-LCR, and P-LCC. It produces three histograms (WBC, RBC, PLT) for graphical cell population insights and includes smart alarms for irregularities in red cells, white cells, or platelets, facilitating quick identification of issues like iron deficiency or immune deficiencies.

Sample Requirements: Utilizes a mere 9 µL sample, making it exceptionally suitable for challenging draws in pediatrics, geriatrics, or field settings. Compatible with venous whole blood, capillary blood (such as finger or heel sticks), and pre-diluted samples, it accommodates varied testing needs while upholding high precision and minimal dilution errors.

Throughput: Handles up to 60 samples hourly, streamlining operations in labs processing 300–600 tests daily. The walk-away automation and fast 25–40 second turnaround per sample reduce bottlenecks, ideal for high-turnover environments like GP practices or emergency departments.

Technology: Leverages electrical impedance for WBC, RBC, and PLT enumeration, combined with cyanide-free spectrophotometry for HGB to promote safer, greener labs. Enhanced by pulse baseline tracking to filter artifacts, waveform discrimination for superior cell classification, and digital sheath flow for accurate volume measurements, it achieves CVs under 3% across parameters. The dual-channel architecture boosts throughput without sacrificing reliability, with automated QC for consistent performance.

User Interface and Storage: Equipped with a vivid 10.4-inch TFT touchscreen for effortless navigation, supporting up to 8 languages (e.g., English, French, Arabic, Chinese) and customizable workflows. Retains 50,000 results with complete datasets—parameters, histograms, patient info—for instant recall and review. Onboard thermal printer delivers professional reports, while four USB ports and bi-directional LIS connectivity enable easy data sharing, external printing, and EMR integration in PDF/CSV formats.

Reagent System: Open architecture integrates with Dymind’s efficient reagents (e.g., DYM-Lyse-1 for lysis), including a built-in lyse position to cut costs and clutter. Automated cleaning protocols and low-consumption design (up to 40% savings) extend intervals between calibrations, with wider linearity ranges minimizing dilutions for extended reagent life.

Dimensions and Portability: Sleek footprint of 410 × 353 × 471 mm (L × W × H) at 25 kg allows easy benchtop or cart mounting in space-constrained labs. Operates quietly (<55 dB) in 15–30°C environments with 30–85% humidity, using minimal power (≤100 VA) for reliable use in off-grid or portable setups.

Throughput: 60 samples/hour
Detection Channel: Dual-channel for robust cell counting.
Detection Principle: Impedance method (WBC/RBC/PLT) and cyanide-free colorimetric method (HGB).
Detection Items: 21 parameters including CBC/DIFF (WBC, Lym#, Mid#, Gran#, Lym%, Mid%, Gran%, RBC, HGB, HCT, MCV, MCH, MCHC, RDW-CV, RDW-SD, PLT, MPV, PDW, PCT, P-LCR, P-LCC); 3 histograms; alarms for abnormal erythrocytes, leukocytes, and platelets.
Built-in thermal printer, supports various types of printer. Multi-builtin print templates available.
50,000 sample results, including parameter, histogram and patient information.
Counting modes: Venous whole blood, capillary whole blood and pre-diluted.
