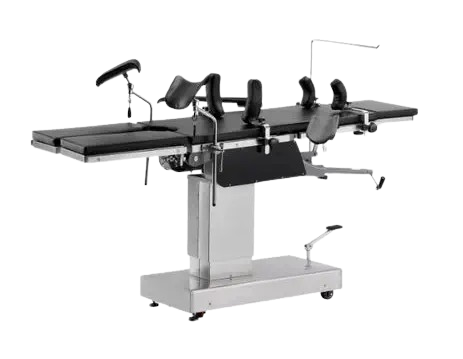

HFMED OT-3008 Electric Operating Table
The HFMED OT-3008 is a fully electric, multi-section operating table with 2,500 mm length, 500 mm width, and 250 kg capacity. Designed for general, orthopedic, and neurosurgery, it features hydraulic height adjustment (680–1,030 mm), Trendelenburg/Reverse ±30°, lateral tilt ±20°, carbon fiber top option, remote control, and battery backup for precise, stable patient positioning in modern ORs.
Description
Design and Protection Mechanism: Multi-Section Electro-Hydraulic Configuration The HFMED OT-3008 is a versatile electro-hydraulic operating table engineered for comprehensive surgical access in general, urologic, gynecologic, orthopedic, and neurosurgical procedures within hospital operating theaters and ambulatory centers. Constructed with a 304 stainless steel base and column for corrosion resistance and easy decontamination, it includes a removable, radiolucent polyurethane mattress (80 mm thick, antistatic) that conforms to ISO 10993 biocompatibility. The seamless tabletop comprises five sections (head, back, seat, leg × 2) with quick-release mechanisms for modular attachments, while the IPX4-rated hydraulic system and shielded electronics ensure fluid resistance and electrical safety per IEC 60601-2-46 standards.
Positioning and Range of Motion Performance: Provides full-body articulation with electric height adjustment from 680–1,030 mm (±5 mm precision), Trendelenburg/Reverse ±30°, lateral tilt ±20°, back section ±80°/±30°, head section ±90°/±45°, and leg sections ±90° downward with 180° spread. The longitudinal slide (optional 350 mm) enables C-arm compatibility without patient repositioning, while the zero-position memory and one-key reset facilitate rapid setup. Load capacity of 250 kg in normal orientation (150 kg in reverse) supports bariatric cases, with <0.1° angular stability under full load.
Tabletop and Accessory Integration: The 2,500 × 500 mm tabletop (optional 550 mm width) features integrated side rails for 300+ accessories, including armboards, leg supports, anesthesia screens, and orthopedic traction frames. The detachable head and leg sections interchange for prone/supine flexibility, while the optional carbon fiber extension (for neurosurgery) offers 360° radiolucency. Built-in kidney bridge elevates 120 mm for lumbar access, and the low-profile base (120 mm clearance) accommodates surgical stools and imaging equipment.
User Interface and Operational Features: Operated via a wired hand pendant with icon-based controls and an auxiliary panel on the column for emergency override, displaying real-time angles, height, and battery status on an LCD. Supports 6 languages (English, Chinese, Spanish, etc.) and stores 5 custom positions. The dual-motor system ensures silent operation (<55 dB), with lockout to prevent accidental activation. A 4-hour rechargeable battery sustains 50+ full cycles during outages, and collision sensors halt motion if obstruction is detected.
Sterilization and Maintenance: The seamless stainless steel frame and removable mattress clean with hospital-grade disinfectants or autoclavable covers (135°C). Hydraulic lines are sealed and self-lubricating, requiring no routine oil changes; the modular design allows section replacement in <10 minutes. Annual calibration via diagnostic port verifies angles and load, with LED indicators for motor health; 3-year warranty includes hydraulic components.
Electrical and Environmental Specifications: Powered by AC 110–240V/50–60Hz at 350W with universal plug and surge protection. Operates in 10–40°C and ≤85% RH, with EMI shielding (IEC 60601-1-2) to avoid interference with monitors or electrosurgical units. Energy-efficient motors reduce consumption by 60% vs. older hydraulic models, with auto-sleep after 5 minutes of inactivity.
Dimensions and Installation Flexibility: Overall dimensions: 2,500 × 500 × 680–1,030 mm (L × W × H) weighs 280 kg. The T-shaped base with central brake and four swivel casters (150 mm) ensures stability and mobility. Requires a 400 kg floor load capacity; installation in <2 hours with pre-wired column. Optional floor-standing or wall-control variants available.
- Throughput and Workflow: Supports 8–12 cases daily with <2-minute repositioning, ideal for 30–60° adjustments per procedure.
- Detection and Monitoring: Dual encoders per axis; logs 1,000 cycles via USB for maintenance and compliance.
- Detection Principle: Electro-hydraulic actuators with position feedback for ±0.1° repeatability.
- Additional Features: C-arm compatible slide; orthopedic extension; neuro headrest; wireless pendant option.
- Data Storage: 500 procedure profiles (angles, time) exportable in CSV.
- Application Modes: General, ortho, neuro, urology, gynecology; compatible with imaging and robotic systems.
